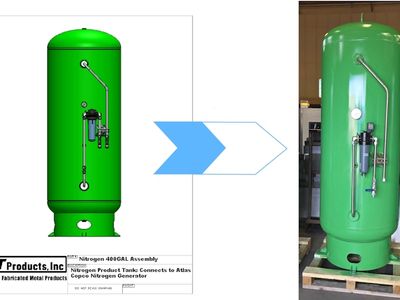

Design and Engineering
From Concept to Reality
At DT Products, we strive to provide our clients with innovative solutions for their manufacturing needs. Our team of experts is dedicated to ensuring that every project we take on is completed to the highest standards of quality. We offer a wide range of services including product design, prototyping, and production. If you have an idea or an existing set of plans, we can help you developed design manufacturer for prototype help you with saving ideas
Metal Cutting Process
Fiber Laser Cutting
Fiber Laser Cutting: Using a Mazak 6kw Optiplex3015 We can process materials 60 inches by 120 inches and nearly 30 Years of Laser Cutting Metals, we have cut Thousands of Tons of Sheet Metal and Plate
Stainless Steel
Nitrogen Cut 1/4" 304 Stainless Steel Flanges for Exhaust Systems.
1-0" Plate Cutting
1-0" Plate Cutting
Fiber Laser Cutting: Using a Mazak 6kw Optiplex3015 We can process materials 60 inches by 120 inches Up to 1.0" Thick Steel.
3/8" Plate Parts
1/4" Steel High Pressure Shop Air
1-0" Plate Cutting
Stacks of 3/8" HRPO Plate Parts using Oxygen Cutting Process.
1/4" Steel High Pressure Shop Air
1/4" Steel High Pressure Shop Air
1/4" Steel High Pressure Shop Air
Using High Pressure Shop Air Cutting process is a Cost-Effective Method of Laser Cutting and achieve good edge quality for post finishing Paint Processes like Powder Coating.
Band Sawing
1/4" Steel High Pressure Shop Air
1/4" Steel High Pressure Shop Air
Saw Cutting: HEM Saw Band Saw cutting, The great economic option for cutting shaped materials such as; Tube and Pipe, Beams, Angle, and Bar Stock.
Metal Finish, Post Cutting
Finishing Methods and Capabilities:

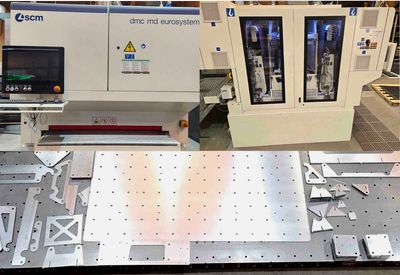

- Flat Material Finishing: Utlizing a SCM/DMC 52" Wide, 5 Station Finishing Machine. For cut Edge Deburring and Slight Edge Break. Linear Line Grain for Stainless #4 Brush Finish, down facing Rotating Cup Brushes for an overall Modeled Finish.
- Tube Finishing: Fein-Grit Centerless Grinding/OD Polisher
Metal Forming Solutions
Forming Methods and Capabilities:

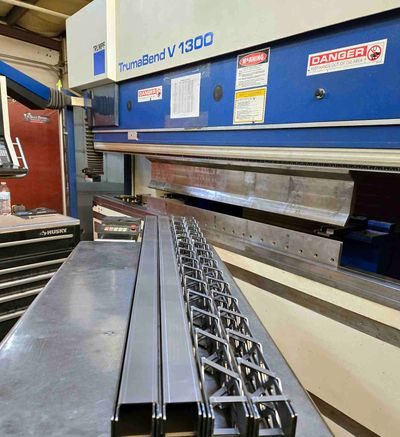

- Bending Capacities: We have 2 Trumpf CNC Press Brakes 1) 85-Ton x 80" Bending Length and 130-Ton 120" Bending Length.
- Sheet Metals: From 22 ga through 3/8" Plate, with certain limitations.
- Hemming Capabilities up to 12 Ga Steel
- Tube Bending: 2-0" OD Round
- Stainless Steel Tube Fabrication: Flaring (JIC) and Bending through 1-1/2" OD Round.
Hardware Installation
PEM Fastener Installation
Hager Press PEM Hardware Installation Machine.
- Clinch Nuts
- Studs
- Standoffs.
- Blind Fasteners
- Flush Studs and Threaded Standoffs
Welding & Fabrication Department
Prescott Fire Wildland Truck | TIG Welding
Prescott Fire Wildland Truck | TIG Welding
Prescott Fire Wildland Truck | TIG Welding
Prescott Fire Department came to us with a project to build some additional Boxes for Crew Gear, Tools, Hose, and Spare Tire to go on their new Type 6 Wildland Firefighting Trucks. These are all Aluminum construction with remote Integrated Locking Latches; Interior wiring loom troughs. Crew Member presses remote button on the Pump Control Panel at back of the truck and the lid opens up.
Gear Cart | Laser & MIG
Prescott Fire Wildland Truck | TIG Welding
Prescott Fire Wildland Truck | TIG Welding
Using a Combination of MIG and Laser Welding, This Fabricated GEAR Cart has a Variety of Material Thicknesses included.
Chip Manufacturing Equipment
Prescott Fire Wildland Truck | TIG Welding
Chip Manufacturing Equipment
Using a Combination of MIG and Laser Welding, This Fabricated GEAR Cart has a Variety of Material Thicknesses included.
MIG Welding
Mining Rock Screen | Large Fabrications
Chip Manufacturing Equipment
Utilizing Laser, Forming, Bandsaw, and MIG Welding Fabrication. Our Welding Crew is Top Notch and can methodically meet your needs and Standards.
TIG Welding
Mining Rock Screen | Large Fabrications
Mining Rock Screen | Large Fabrications
Spring Shackle Assembly, Fully TIG Welded for Aftermarket Automotive Market.
Mining Rock Screen | Large Fabrications
Mining Rock Screen | Large Fabrications
Mining Rock Screen | Large Fabrications
This 108" Tall x 108" Wide Vari-Pitch (1-1/2" Minus to 9" Minus) Sizing Rock Screen. Utilizes most of DT Products available Processes.
- Design and Engineering
- Laser Cutting.
- CNC Machining
- Band Saw.
- Forming.
- MIG Welding
Coating and Finishing Services
Powder Coating PFD Type VI
Powder Coating PFD Type VI
Powder Coating PFD Type VI
Prescott Fire Department Boxes for Crew Gear, Tools, Hose, and Spare Tire to go on their new Type 6 Wildland Firefighting Trucks. These are all Aluminum Construction with Fire Engine Red and Wire Protection using Bright Orange.
Anodizing | Laser Marking
Powder Coating PFD Type VI
Powder Coating PFD Type VI
This Machined Assembly is Produced In-House using
- Machining
- Type II Black Anodize
- Laser Marking
- Assembly
Zinc Plating
Laser Part Marking
Laser Part Marking
This Machined and TIG Weldment has been Yellow Zinc Coated for a Moderate Corrosion Resistance.
Laser Part Marking
Laser Part Marking
Laser Part Marking
Utilizing Laser Marking Technology for Logo, Marketing Purposes, Part # and Tracability.
